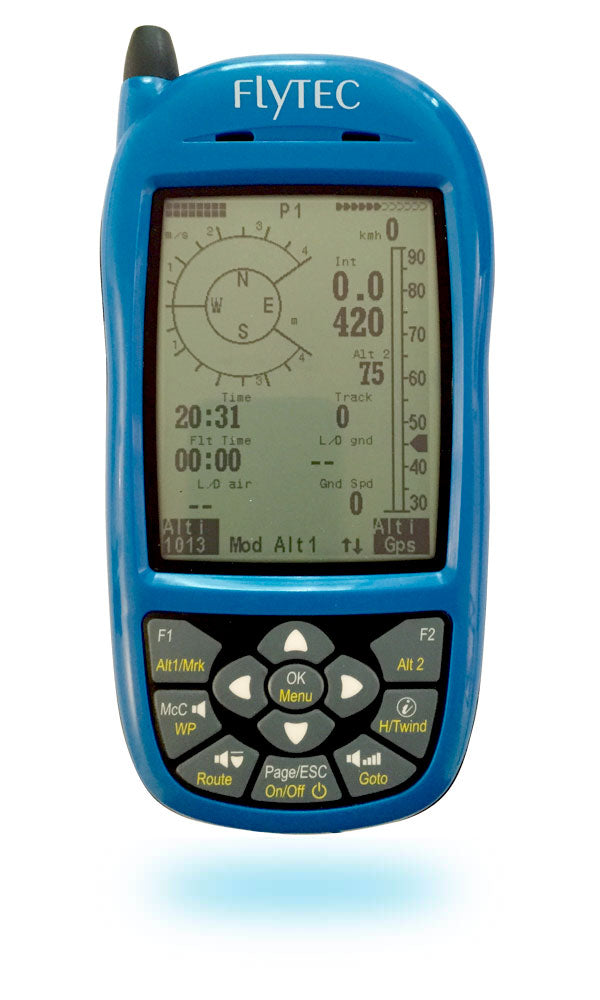

Flytec 6030 - the GOLD standard Flight Computer

Flytec 6030 - the GOLD standard Flight Computer

$863.00 USD

~~$863.00 USD~~ $863.00 USD

Sale Custom Order

Custom Order - Contact Us

Overview

Integrated high sensitivity, 20 channel GPS
Highly responsive vario with intelligent filtering
Built-in pitot airspeed
Total energy compensation
User customizable audio and flight functions
User-friendly keypad and menu
Moving map
Automatic flight recording
200 waypoints and 20 Routes (unlimited with SD card)
Competition route with turnpoint archived notification
Advanced real-time flight-path route optimization
McCready speed-to-fly and final glide
Automatic indication to the last best lift
Wind speed and direction
Simulation mode
Restricted airspace warning and map
FLARM anti-collision available
Bluetooth link to external device available
Sleek, compact and rugged housing
Primary and back-up rechargeable batteries >30 hours battery life
Superb RF shielding

Technical Specifications

General

Robust, shockproof ABS housing, special red finish
Large high contrast graphic LCD (2-3/8" x 3-1/8")
Dimensions: 6-3/4"x3-3/8"x1"(170x88x26mm)
Weight: 12 oz (340 grams) including batteries
Power supply: 4x AA batteries (NiMH or Alkaline)
SD card for storage of flights, waypoints, routes, airspace and instrument configuration
Battery life: >30 h
Operating temperature: 5º to 122ºF (-15 to 50ºC)

Altimeter

Units: m / ft
Resolution: 1 m or 1 ft
Range: up to 36,000 ft or 11,000 m
QNH: air pressure indication in hPa or in Hg
ALT 1: absolute altitude
ALT 2: relative altitude
ALT 3: total altitude gained

Variometer

Units: m/s or fpm
Graphic indication: ±1600 ft/min. or ±8 m/s
Graphic resolution: 40 ft/min. or 0.2 m/s
Numeric indication: ±20,000 ft/min or ±100 m/s
Numeric resolution; 10 ft/min or 0.1 m/s
Averager: selectable from 1 s to 30 s
Thermal averager 1 to 10 min. (for McCready next expected climb)

Acoustics

Volume: 4 levels + Off
Climb tone: selectable lower threshold, base frequency, cadence, modulation, dampening
Near-thermal tone: selectable lower threshold
Sink tone: selectable upper threshold and base frequency
Stall alarm: selectable threshold (can be disabled)
Turnpoint reached alert tone
Airspace approach and entered alert

Airspeed

Built in pitot airspeed or optional external HG or PG sensor
Total energy compensation
Units: kph, knots, mph
Digital display range:12-180 mph (19-300 kph), resolution 1 mph, kph, kt
Graphic display range: 12–54 mph (20–90 km/h)
Graphic display of altitude corrected stall speed
Calibration: -30% to + 50%

GPS

High performance GPS receiver with 48 channels
Position determination at 1 Hz
Compass
Distance and direction to last thermal pointer
Wind speed and direction
One–button current position display
Quick mark of current position as waypoint
Add, edit and delete waypoints and routes from instrument keypad

Waypoints

Capacity: 200 waypoints (virtually unlimited with SD card)
Entry: Store current position, manual entry, load waypoints from GPX file
Coordinate formats: dd.ddddd, dd’mm.mm , dd’mm’ss
Easily manage waypoint lists for each flying site

Routes

Capacity: 20 routes
Entry: Selection from waypoints list
Race route: Start time, number of start gates, exit or enter start, start gate interval with start assistant
Optimized race route
Waypoint-achieved notification with instant record of cylinder crossing

Navigation

Pointer and to next and second waypoint
Easy skipping waypoints and/or insertion of new waypoint(s) in flight
Route: manual or automatic advancement of waypoint
Speed over ground
Wind: direction graphic, and numeric direction and speed
Last thermal: graphic and numeric direction and distance
Units for distance: km or miles

Airspace

Acoustic and visual warning before and upon entering restricted airspace
Display of 5 nearest airspaces
Airspace shown on map page
Store virtually unlimited airspace files
Easily manage airspace lists lists for each flying region

Recording

Internal logbook: 100 flights: date, start time, duration, max altitude, climb, sink, speed
Flight recording in IGC format
Automatic flight start and stop detection
Recording interval: 1 s to 60 s
Record time: virtually unlimited flight recording using SD card
Flight memory data maintained if batteries are depleted or are removed

User selectable data fields

Optional modules

Bluetooth Flight data transfer to external devices
Flarm anti collision
